Service 04

Rebar Detailing

Advanced reinforcement detailing, BIM-integrated workflows, and accurate bar bending schedules for constructible execution.

Built for clarity

Information your project team can act on.

Develop a precise technical output that connects design intent with coordinated construction delivery.

Capabilities

Fully parameterized reinforcement models integrated into the structural BIM environment.

BBS generation aligned with ACI, BS, Eurocode, and IS standards.

Reinforcement detailing for precast elements and fabrication tolerances.

Early identification of congestion and conflicts with inserts or MEP sleeves.

Preliminary reinforcement takeoffs for bidding and material procurement.

Clear 2D placement drawings for field crews.

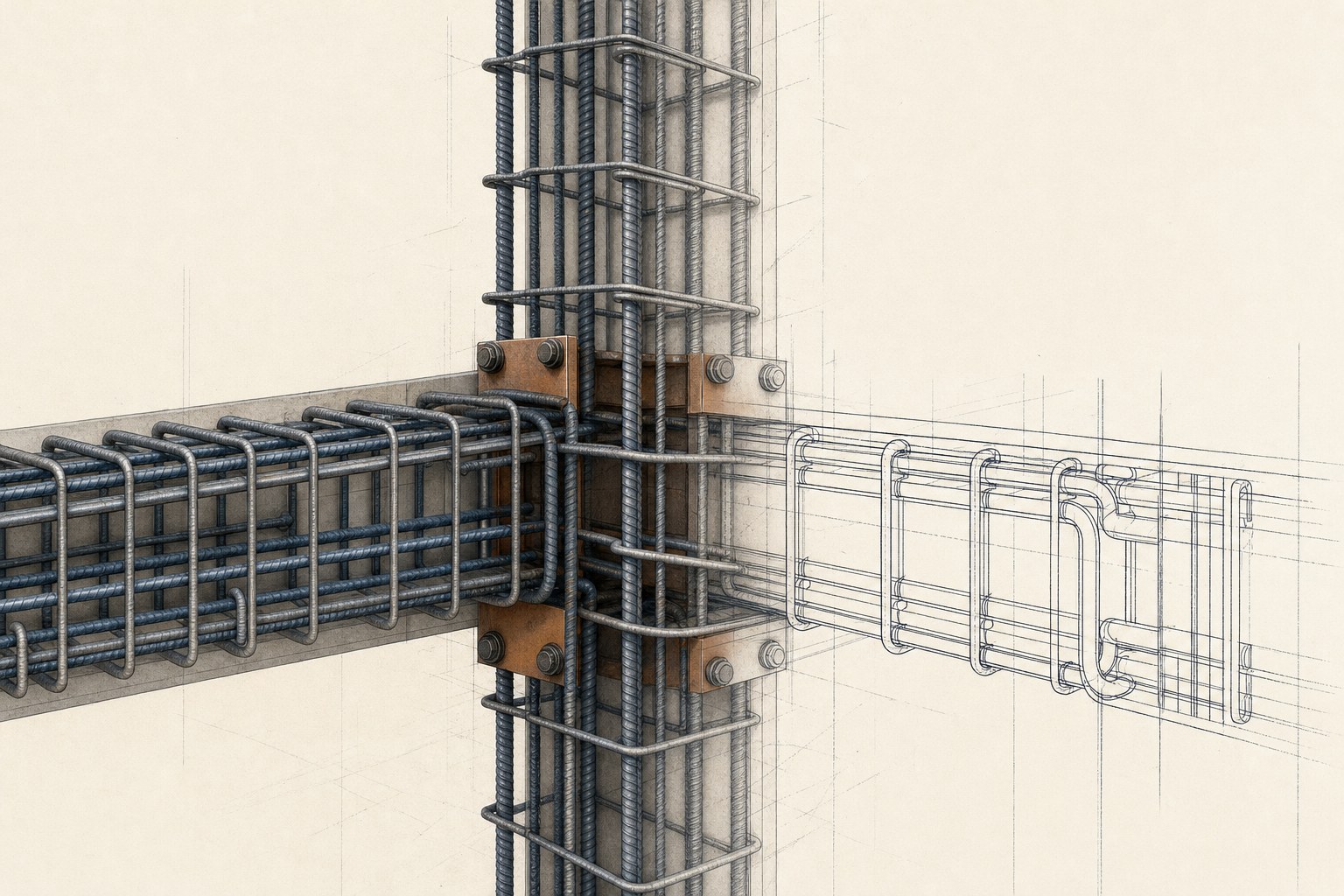

Reinforcement detail

3D reinforcement models, placement drawings and bar bending schedules connect structural intent to fabrication and installation.

Project deliverables

Plan the handoff

Bring the project information you have. We will help clarify the next technical deliverable.
